Forklift Hydraulic Power Unit

Forklift Hydraulic Power Unit

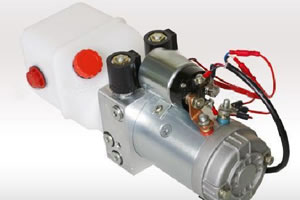

This is a DC hydraulic power unit designed for electric forklift trucks.
Our forklift hydraulic power unit is designed with a two-way two-position solenoid check valve to control cylinder operation. Manual control for cylinder operation is also allowable.
An inbuilt throttling valve is available at the oil return port, which keeps the hydraulic device descending steadily and at a constant speed. This design also provides our hydraulic power units with simple operation and convenient maintenance as well as good pressure maintaining performance.

Specifications of Forklift Hydraulic Power Unit

1 Rated Pressure (MPa) 20
2 Rated displacement (ml/r) 1.6, 2.0, 2.5, 3.3
3 Operating voltage (V) 12, 24, 48
4 Motor power (KW) 1.6, 2, 2.5
5 Load speed (rpm) 2500
6 Operation condition (%) S1=10
7 Oil tank capacity (L) 1.5-12
8 Mounting type Vertical, horizontal
9 Outlet size SAE6#, SAE8#

Usage Instructions on Forklift Hydraulic Power Unit
1. The contamination degree of hydraulic oil shouldn't exceed ISO 4406 18/14. The hydraulic oil should be filtered by a 10-30μm filter before put into use. The oil viscosity should be 22-46mm2/s in accordance with ISO3448 viscosity classification.
2. To achieve thermal equilibrium of the electric motor, we have to assure that the ratio between interval time and operation time of the hydraulic power pack is 1:9.
3. This forklift hydraulic power unit is in line with Q/320203ABP01-2004 standard.

Wantong Hydraulic Power Machinery Company is a professional forklift hydraulic power unit manufacturer and supplier based in Qingdao, China. We can provide not only hydraulic power packs but also hydraulic cylinders. Our company has obtained ISO9001:2000 international quality management system certification. Hence, customers can feel secure in using our products.
Qingdao is a beautiful costal city in China. We welcome global wholesalers, vendors and sales agents to contact us for more information.
